Below are some examples using both the OpenBMP UI and CLI command line mysql client.

As described in the documentation, the database is standard SQL and any ODBC or native driver and tool can be used. Reporting tools like Business Objects, Jasper, … can be used.

The UI uses the OpenBMP API, which is using the MySQL backend.

UI Screenshots

Top 20 Prefixes updated and withdrawn

Time period customizable

Peer Info

Similar to show bgp neighbor, which includes the TCP session and capabilities

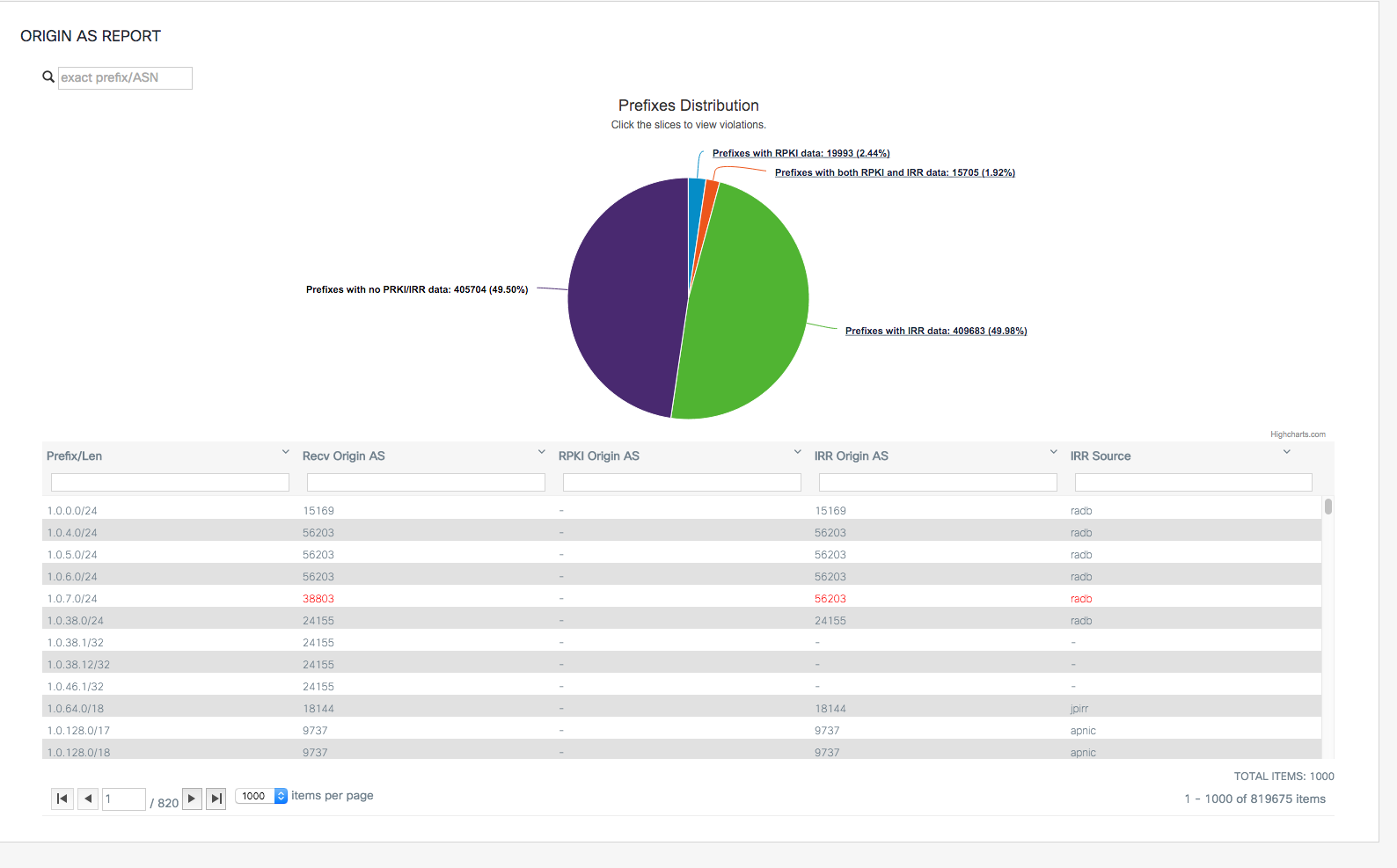

Security Analysis

Report received origin of prefixes to RPKI and IRR. IRR data is downloaded once a day. RPKI is continually updated every few minutes.

BGP-LS

BGP-LS provides the link-state topology for either IS-IS and/or OSPF. SPF’s are run per router to build the topology and routing tables. Run path traces, including the ability to run them with constraints, such as what if this router link didn’t exist or what if one was added…

AS Analysis

RIB

Routing table is maintained per BGP peer (pre and post policy)

Per peer Pre and Post policy metrics are tracked over time

View the history of any prefix.

Per peer updates over time

Per peer withdrawals over time


MySQL Client

Routes Example

MySQL [openBMP]> select RouterName,PeerName,Prefix,PrefixLen,Origin,Origin_AS,MED,LocalPref,NH,AS_Path from routes where prefix like '24.50.20%';
+-------------+----------+-------------+-----------+------------+-----------+------+-----------+-------------+-----------------------------------------------------------------+
| RouterName  | PeerName | Prefix      | PrefixLen | Origin     | Origin_AS | MED  | LocalPref | NH          | AS_Path                                                         |
+-------------+----------+-------------+-----------+------------+-----------+------+-----------+-------------+-----------------------------------------------------------------+
| tievens-csr | sp-asrk1 | 24.50.20.0  |        24 | igp        |      1246 |    0 |       100 | 10.32.0.254 |  65109 64530 109 701 3356 26801 1246                            |
| tievens-csr | sp-asrk1 | 24.50.208.0 |        20 | incomplete |     14638 |    0 |       100 | 10.32.0.254 |  65109 64530 109 7018 11992 14638 14638 14638 14638 14638 14638 |
+-------------+----------+-------------+-----------+------------+-----------+------+-----------+-------------+-----------------------------------------------------------------+

Routes History Example

MySQL [openBMP]> select RouterName,PeerName,Prefix,PrefixLen,Origin,Origin_AS,MED,LocalPref,NH,AS_Path,LastModified  from routes_history where prefix = '24.50.208.0' order by LastModified Desc;
+-------------+----------+-------------+-----------+------------+-----------+------+-----------+-------------+----------------------------------------------------------------------+---------------------+
| RouterName  | PeerName | Prefix      | PrefixLen | Origin     | Origin_AS | MED  | LocalPref | NH          | AS_Path                                                              | LastModified        |
+-------------+----------+-------------+-----------+------------+-----------+------+-----------+-------------+----------------------------------------------------------------------+---------------------+
| tievens-csr | sp-asrk1 | 24.50.208.0 |        20 | incomplete |     14638 |    0 |       100 | 10.32.0.254 |  65109 64530 109 7018 11992 14638 14638 14638 14638 14638 14638      | 2014-06-14 13:40:24 |
| tievens-csr | sp-asrk1 | 24.50.208.0 |        20 | incomplete |     14638 |    0 |       100 | 10.32.0.254 |  65109 64530 109 701 12956 12956 12956 12956 12956 12956 12956 14638 | 2014-06-14 08:02:25 |
| tievens-csr | sp-asrk1 | 24.50.208.0 |        20 | incomplete |     14638 |    0 |       100 | 10.32.0.254 |  65109 64530 109 7018 12956 14638                                    | 2014-05-29 22:24:59 |
+-------------+----------+-------------+-----------+------------+-----------+------+-----------+-------------+----------------------------------------------------------------------+---------------------+
